CP/MST Core Platform/Multiport Service Terminal
Features
- Advanced design reduced form terminal
- Compatible with OptiTap, used in almost every largescale FTTH deployment
- Input port options: flat drop cables, MPO trunks, PLC splitters
- Industry best lead time and lower cost

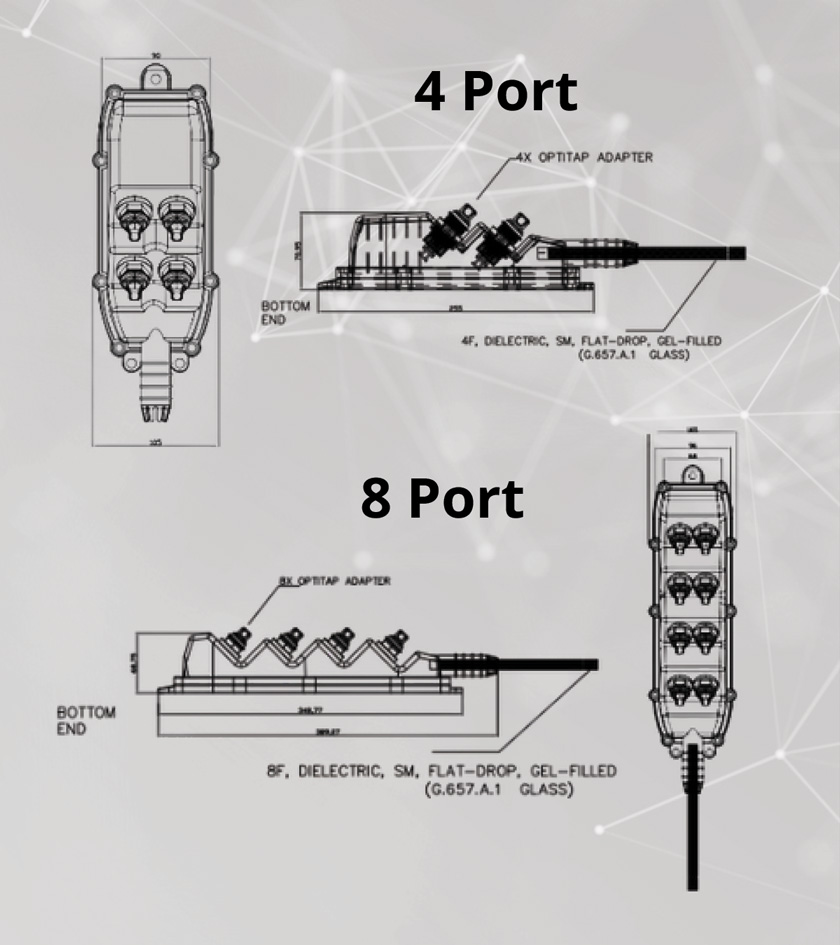

Dimensions
Height 2/4 Port 71mm, 6/8 Port 69mm, 12 Port 73mm
Width 2/4 Port 105mm, 6/8 Port 105mm, 12 Port 140mm
Length 2/4 Port 255mm, 6/8 Port 349mm, 12 Port 317mm
IP68 Factory sealed with Plug and Play adapter ports
Cable type: Flat Drop Dielectric, Toneable, Round
Port – Hardened full size SCA
Fiber type G.657.A1/A2, G.652D
Operating wavelength 1260-1635
Attenuation terminal connectors maximum 0.4dB
SCA IL <=20dB RL >=65dB
MPO IL <=30dB RL >=50dB
Operating temperature -40 to 80C
Hardened plastic UV Resistant
Color Black
Stub Tail
Mounting: Wall Pole Aerial
