Pushable Assemblies
Features

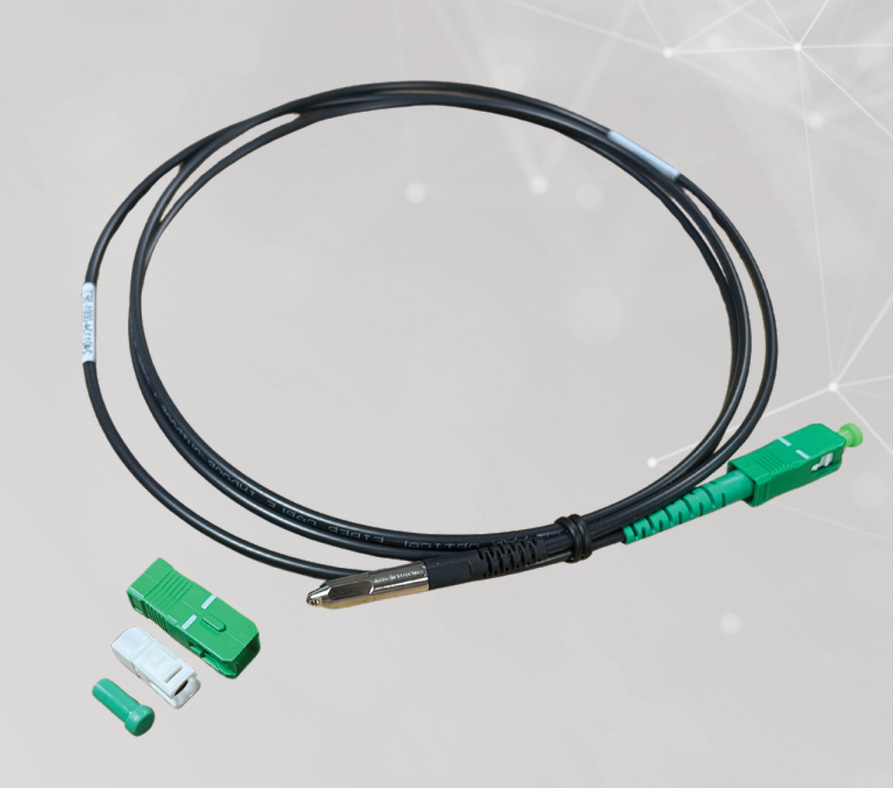

ZERO Connect pushable fiber assemblies are made with a robust micro-armored 3.0mm black jacket and bend insensitive fiber. This makes pushing them through the walls or duct pathways much easier with no kinking. Once in place, the bullet cap is easily removed, and the SC/APC shroud is easily snapped in place with no use of tools. The pushable assemblies can fit through an opening as small as 3/8″ so no need for excessive holes in the wall, resulting in a cleaner look.
Specifications
Connector A: SC/APC SM Simplex (Green Housing, Green Boot)
Connector B: SC/APC Pushable (Metal Housing, Black Boot)
Cable Type: 9/125um OS2 SM G657A2, OD: 3.0mm, Simplex, Armored, PE, Black Jacket
Insertion Loss: ≤ 0.3dB
Return Loss: ≥ 60dB (APC)
MIN Bending Rating Radius: 6CM <Loaded>, 3CM <Unloaded>
Operating Temperature: -20 to +70 °C
Storage Temperature: -40 to +70 °C
Standards: ANSI/TIA/EIA 568-C.3
